modeling process in Solidworks
in motion
exploded view
Design with Solidworks (Spring 2019)
Instructor: Rachael Gordon
3D printed Connection Project

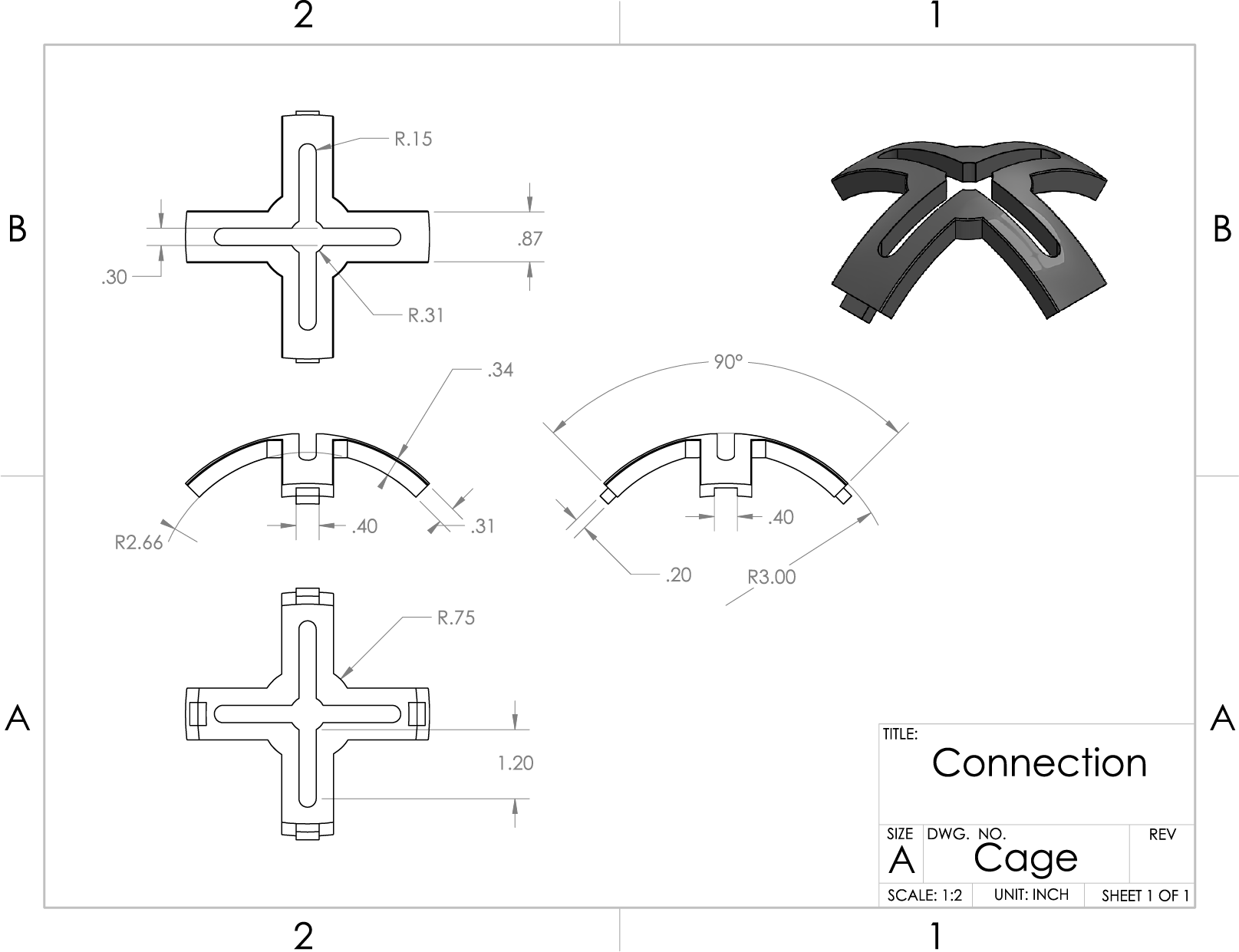

It is the first project for our Solidworks class. Our prompt is to create a 3D form which consists multiple connection method. The connection should be temporary. The modeling is all done in Solidworks and then 3D printed. For my design, I want something playful and interactive. The same 6 pieces form a cage, securing the ball in the middle. Also, the tracks allow the ball be turned in 3 axis by the knobs sticking out.
